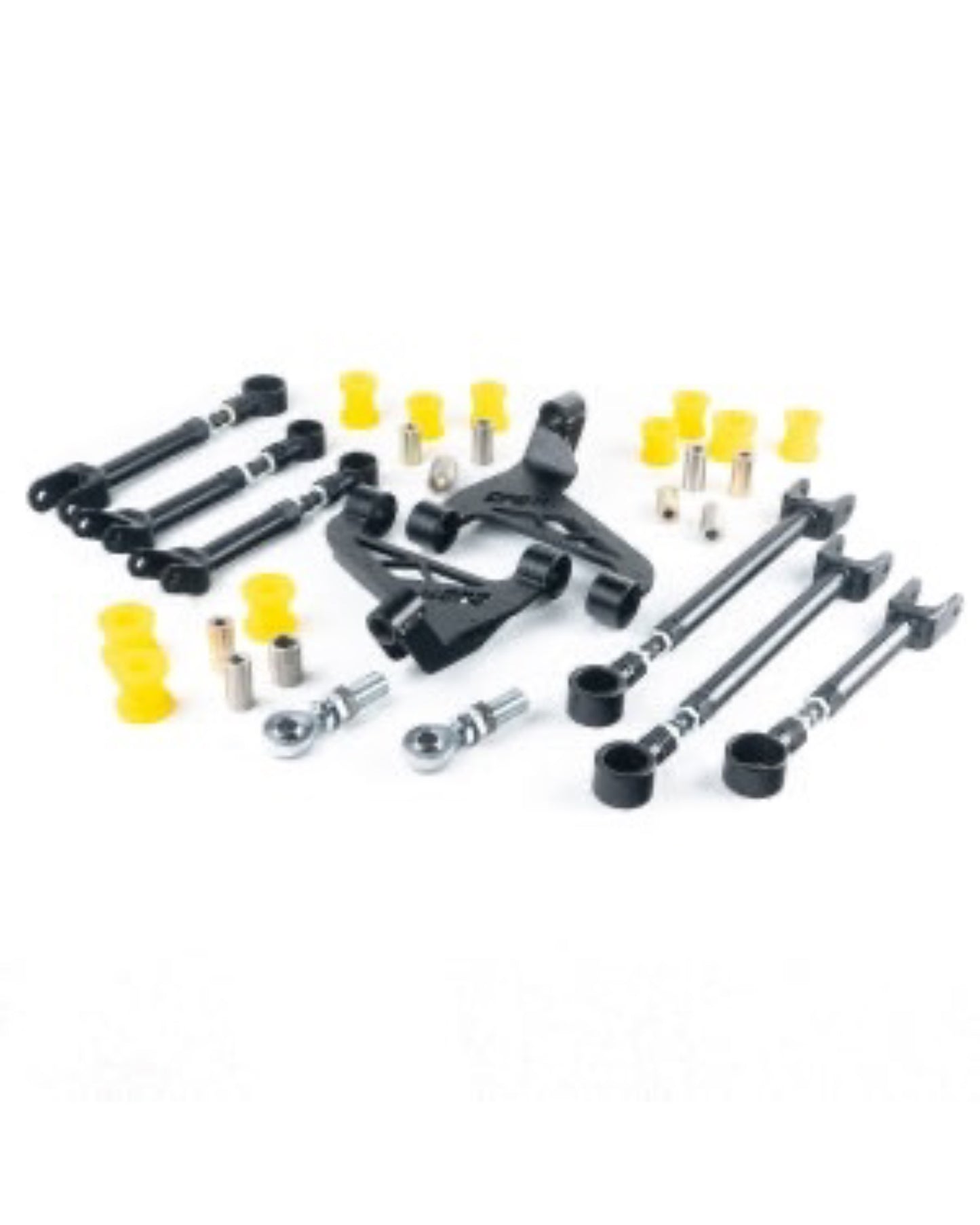

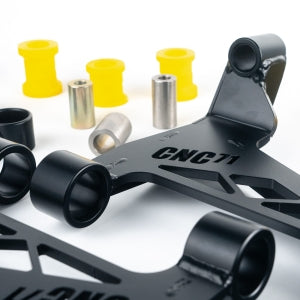

CNC71 - ADJUSTABLE REAR SUSPENSION SET NISSAN 350Z / INFINITI G35

Full set of adjustable rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

Made of S355 steel, made on CNC machines, welded using the MAG and TIG methods.

100% match to the serial steering knuckle pin, adapted for polyurethane bushings.

Adjustment using turnbuckles.

Powder coated in matt black.

With adjustable rear suspension control arms designed by CNC71 Motorsport for the Nissan 350Z, it is possible to set the rear suspension to best suit the driver's driving style. This is especially useful when preparing the car for motorsport - drifting and time attack. A set of adjustable wishbones is also an ideal solution for lowering the car to achieve the desired effect of fitting the wheels to the body - which is perfect for lowered suspension.

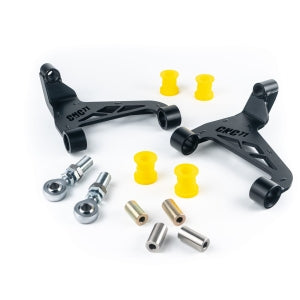

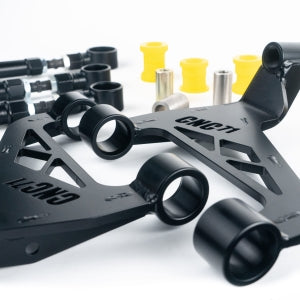

Nissan 350Z Adjustable Rear Upper Control Arms:

In place of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used. The swingarm mounting is based on a ball bearing.

Through the adjustment range in "+" and "-", the CNC71 Motorsport swingarm for the Nissan 350Z allows you to obtain maximum traction of the vehicle on the drive axle. The total adjustment range is approximately 30 mm (280 mm - 310 mm), of which, compared to the original swing arm (300 mm), it can be shortened by 20 mm or extended by 10 mm.

The upper wishbone allows you to change mainly the wheel camber angle. Full adjustability can only be achieved by using a complete set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The wishbone set includes:

• Adjustable rear upper wishbone, LEFT - 1 pc.
• Adjustable rear upper wishbone RIGHT - 1 pc.
• Uniball M18 - 2 pcs
• Set of uniball inserts (crossover mounting)
• Locking nuts for uniball
• Screw set
• Special insert for adjusting the swing arm length

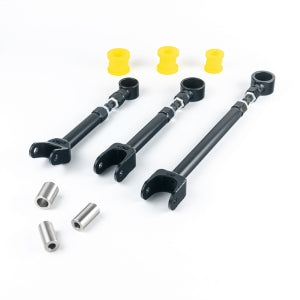

Nissan 350Z Adjustable Rear Traction Rods:

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

Through the adjustment range in "+" and "-", the CNC71 Motorsport swingarm for the Nissan 350Z allows you to obtain maximum traction of the vehicle on the drive axle. The total adjustment range is approximately 30 mm (322 mm - 352 mm), of which, compared to the original swing arm (332 mm), it can be shortened by 10 mm or extended by 20 mm.

Traction rod allows you to change mainly toe and camber, but full adjustment can only be achieved by using a full set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The set of traction rods includes:

• Adjustable rear traction rod - 2 pcs
• Locking nuts - 2 pcs
• Screw set
• Turnbuckle

Nissan 350Z Adjustable Rear Lower Control Arms:

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

Through the adjustment range in "+" and "-", the CNC71 Motorsport swingarm for the Nissan 350Z allows you to obtain maximum traction of the vehicle on the drive axle. The total adjustment range is approximately 30 mm (298 mm - 328 mm), of which, compared to the original swing arm (308 mm), it can be shortened by 10 mm or extended by 20 mm.

The adjustable lower wishbone allows you to change mainly toe and camber, but full adjustment can only be achieved by using a full set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The set of lower wishbones includes:

• Adjustable lower rear wishbone - 2 pcs
• Locking nuts - 2 pcs
• Screw set
• Turnbuckle

Nissan 350Z Adjustable Rear Coil Links :

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

Through the adjustment range in "+" and "-", the CNC71 Motorsport coil link for the Nissan 350Z allows you to obtain maximum traction of the vehicle on the drive axle. The total adjustment range is approximately 30 mm (435 mm - 465 mm), of which, compared to the original swing arm (445 mm), it can be shortened by 10 mm or extended by 20 mm.

Coil link allows you to change mainly the wheel toe and camber angle (camber), but full adjustability can only be achieved by using a full set of rear suspension arms for Nissan 350Z from CNC71 Motorsport.

The set of coil links includes:

• Adjustable rear coil link - 2 pcs
• Locking nuts - 2 pcs
• Screw set
• Turnbuckle
