FTWL - SAJŪGA KOMPLEKTS Toyota JZ / BMW M57/ M47N / E46 / M3 Twin Plate STAGE 4

HIGH-PERFORMANCE TWIN DISC CLUTCH SET FOR  TOYOTA 1JZ, 2JZ engine and BMW M57, M47N, E46 M3 gearbox - STAGE 4 FTWL

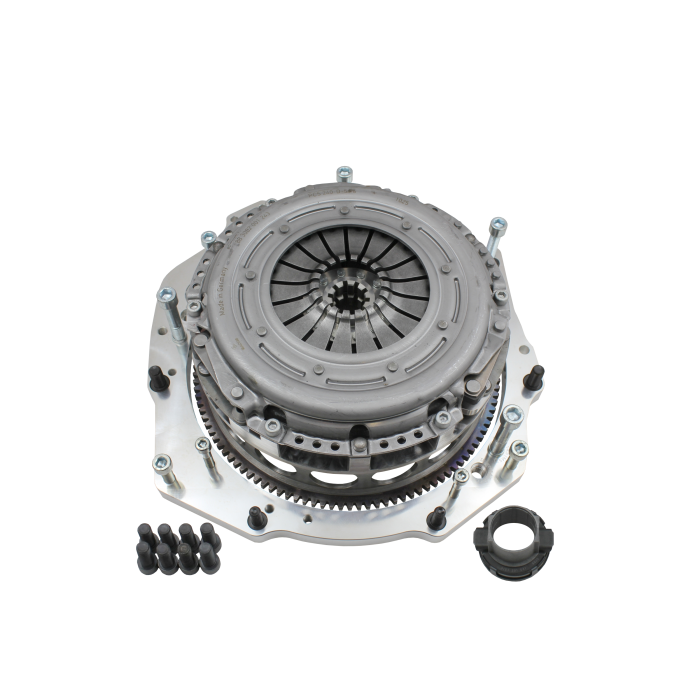

Set consist of single mass twin disc clutch set, throwout bearing and all needed bolts (12.9 class)

100% CNC machined parts - MADE IN UE

Precision machining and alignment assures precise fit

MONOBLOCK single mass flywheel - weight ~ 8,2 kgs.

Rotating assembly weight ~ 15,2 kgs. (flywheel + middle plate + pressure plate)

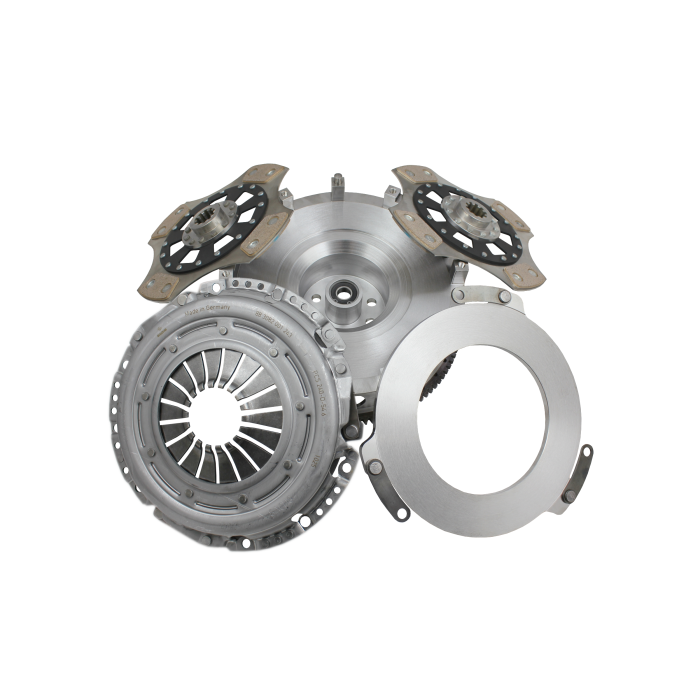

Custom made and lightweight 240 mm 4 puck sintered clutch discs (MIBA sintered pads)

Sachs Performance 883082001243 pressure plate without SAC system

Heat-resistant CNC machined clutch discs spacer/middle plate

Clutch sets are fully balanced - END TO END - flywheel + middle plate + pressure plate together in accordance to the G6.3 class and up to 8500 rpm. Each clutch set is delivered with unique balance protocol

Thanks to ultimate design and quality of the middle plate it is not making any noises when you press the clutch pedal. It will also not get stuck when gets heat because it is not touching the flywheel anywhere

Works and engages smooth (despite sintered clutch discs)

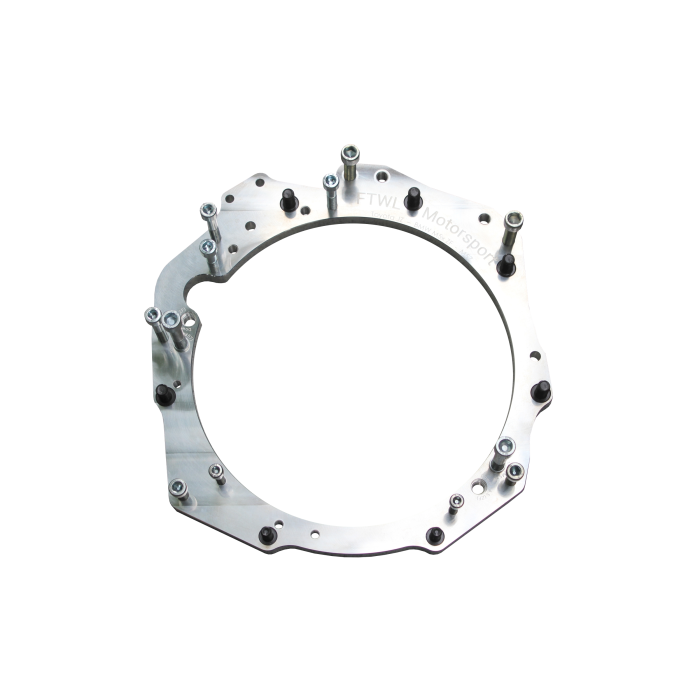

Delivered with 19 mm thick aluminium adapter plate with all necessary bolts. Adapter requires DENSO 228000 series starter motor which has no aluminium cover over the starter gear.

Fits to TOYOTA 1JZ, 2JZ engines with following transmissions:

- 5 speed N47M ZF gearbox - 28x35-10N spline shaft

- 6 speed S54B32 Getrag - 28x35-10N spline shaft

- 5 speed M57 ZF - 28x35-10N spline shaft

Set will not fit to the lift version of M54B30 with 6 speed gearbox

Set will not fit to the Getrag/ZF 5 speed gearboxes

Perfect for high power turbocharged engines

Set prepared for the most powerful professional drift and drag cars, can handle up to ~1200-1400 Nm of torque.

For entry level drifting needs up to ~1000 Nm - we recommend to keep torque reserve. In case of lot of clutch kicks we highly recommend to choose stage 2 or 4 version based on sintered clutch discs (stage 2 or 4)

Professional installation is necessary + break-in procedure required - at least 1000 km or 5000 gear shifts

Our flywheels always have got starter gear mounted on it (monoblock solution)

All used parts are typical - it means that whole set can be cheaply and fast renewed

Each product has been stress tested - because only power and quality matters.
