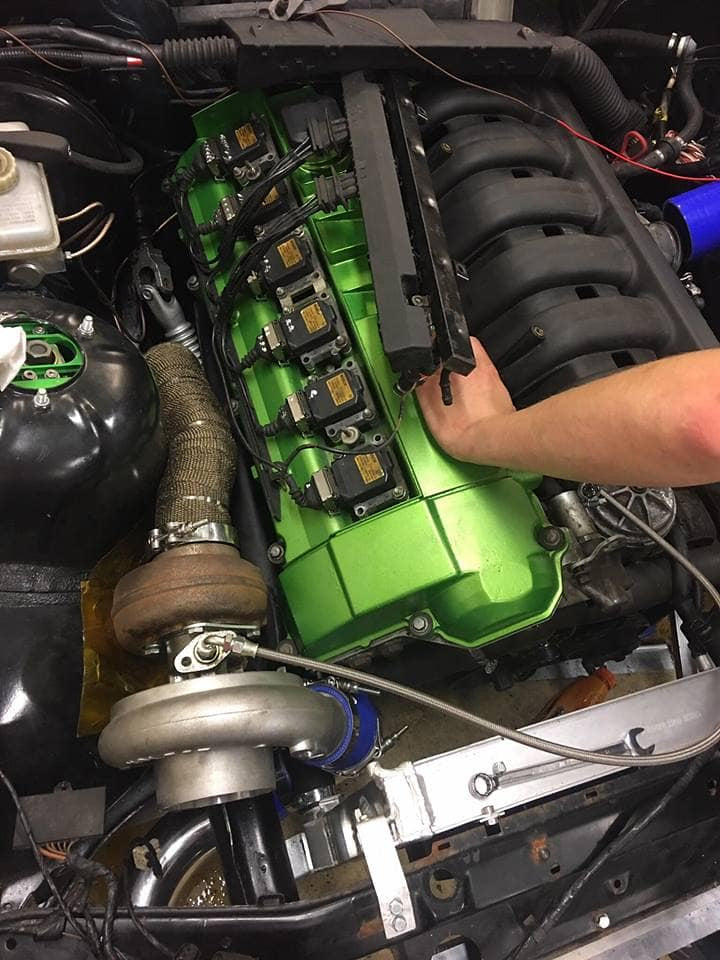

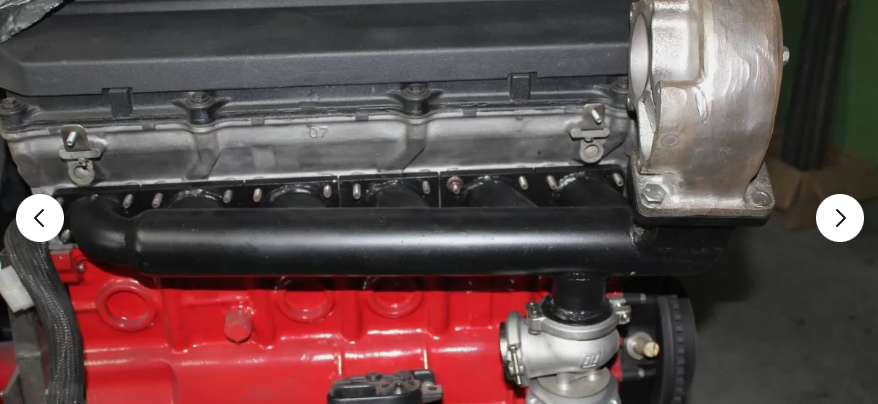

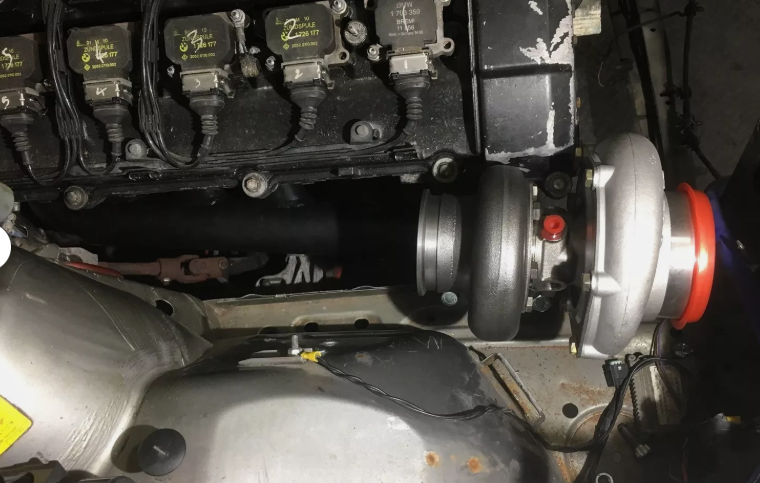

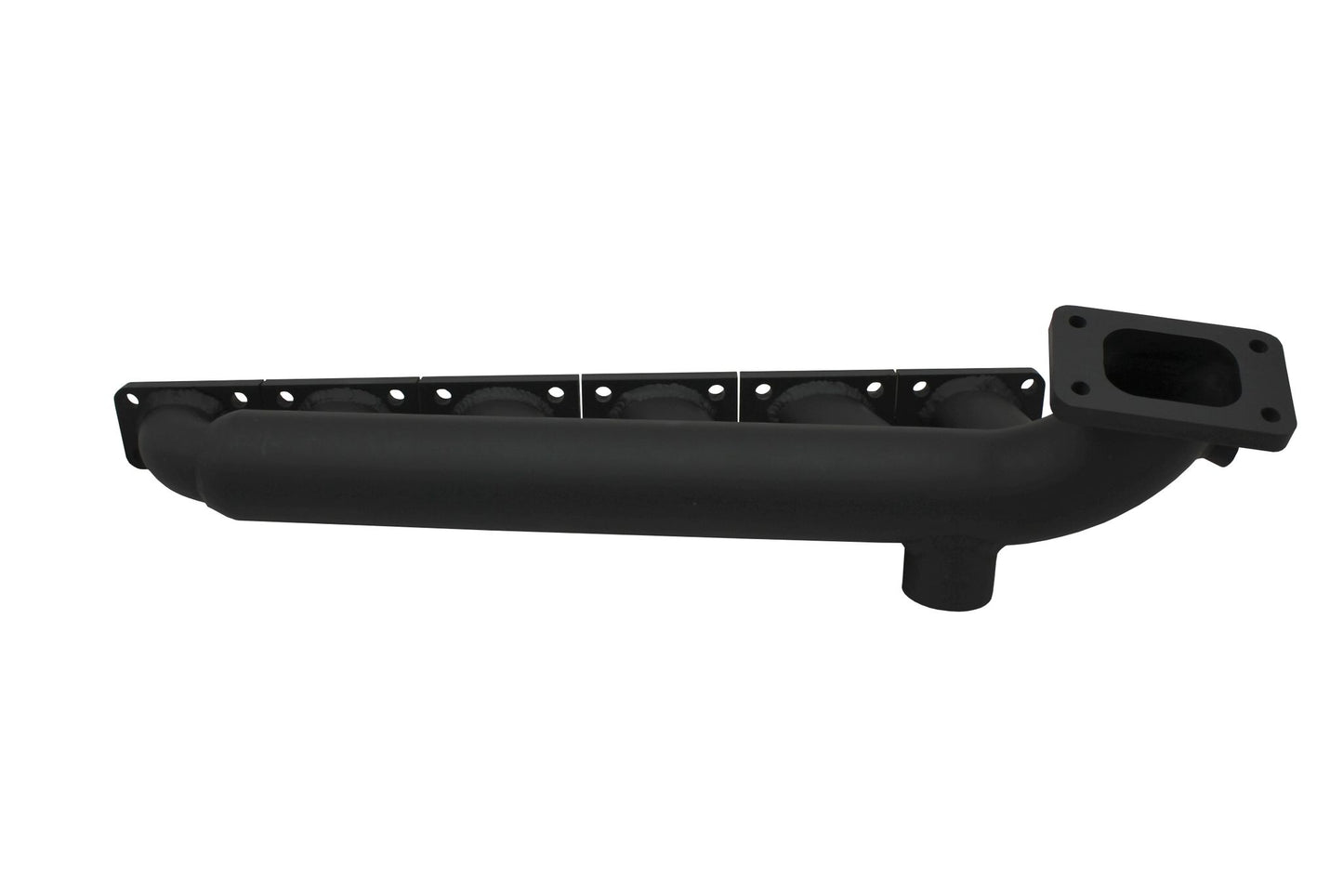

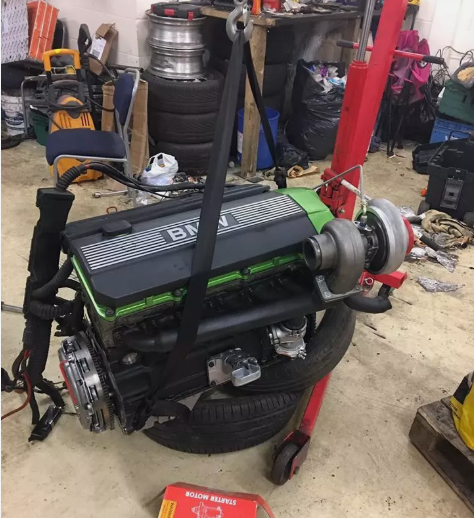

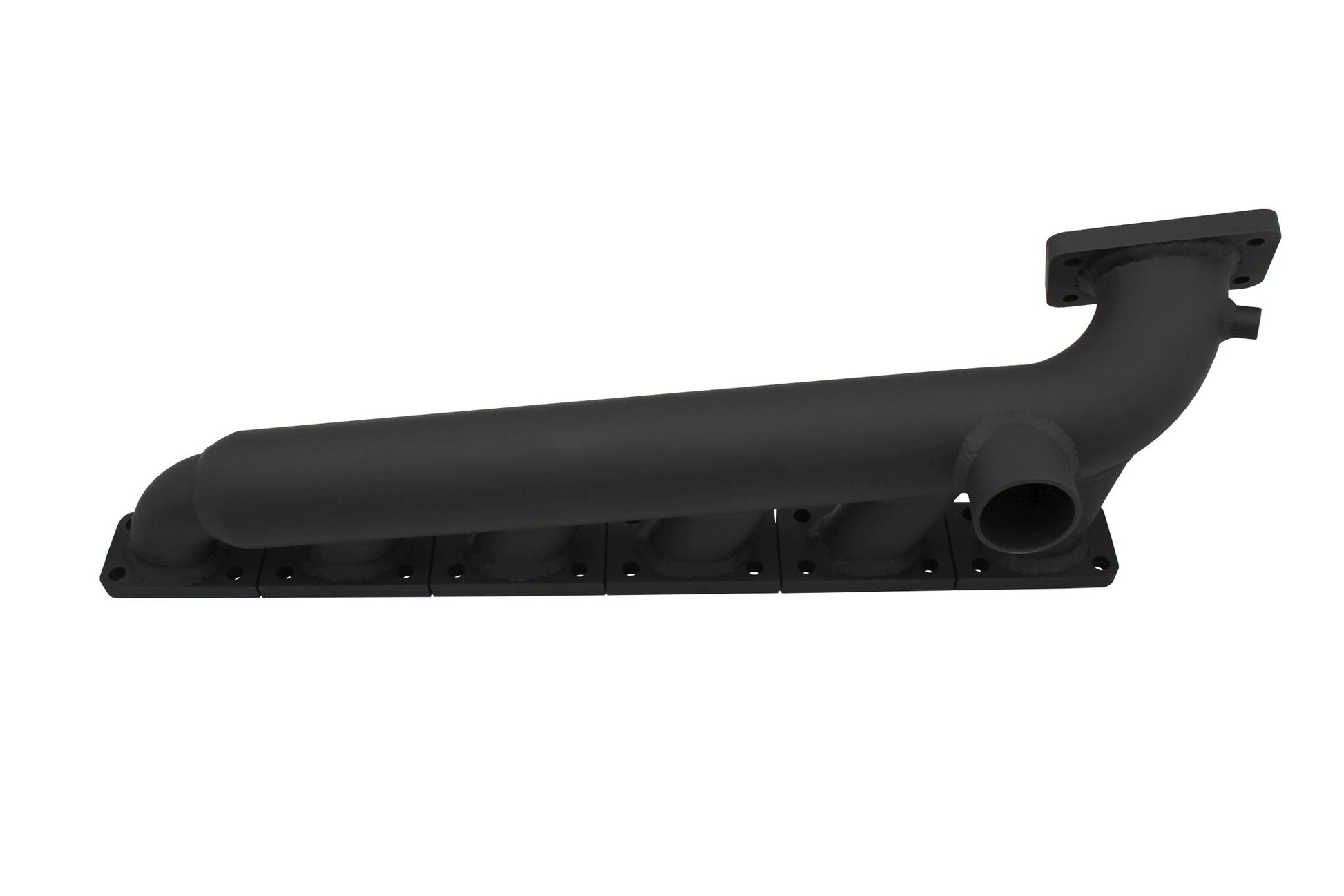

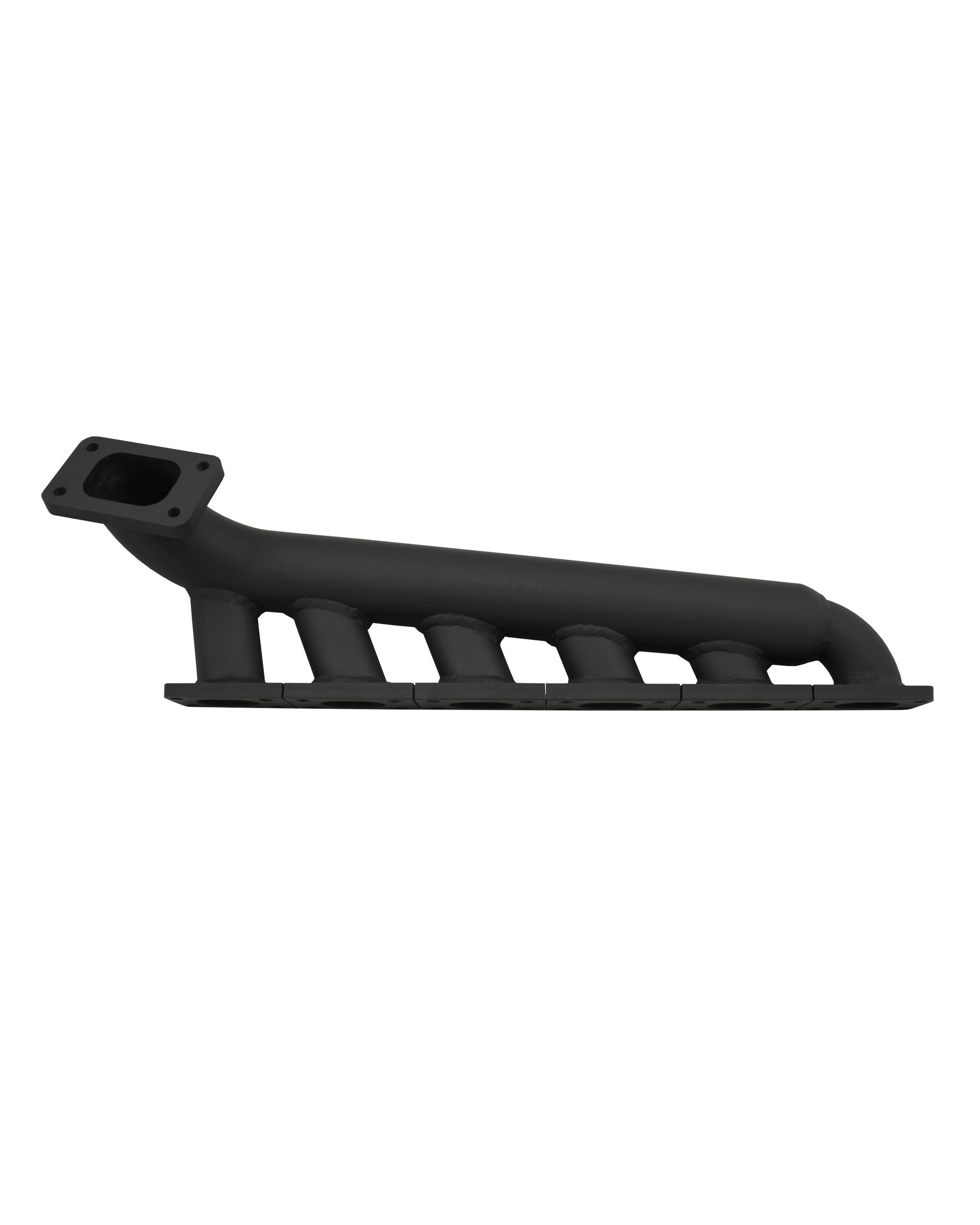

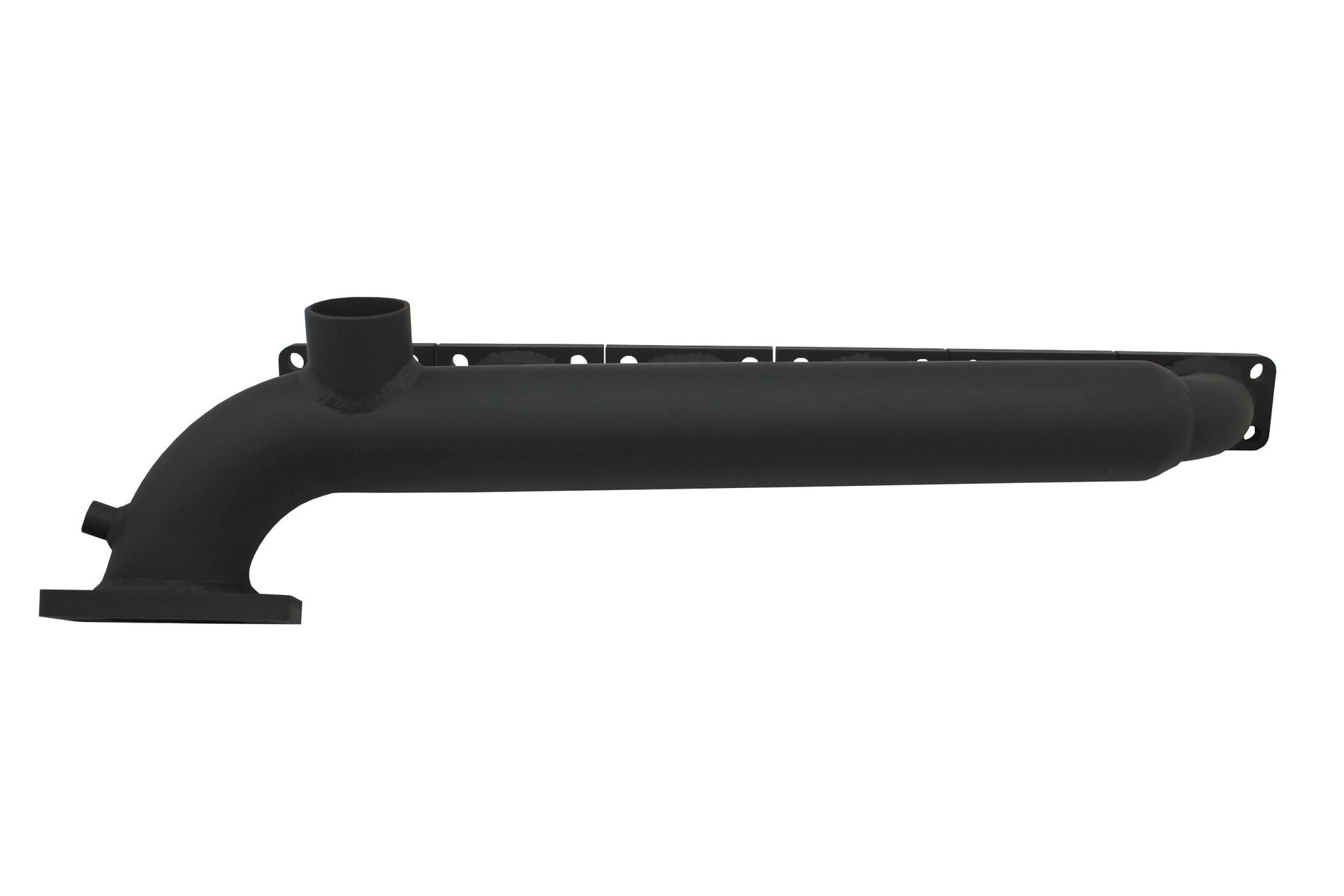

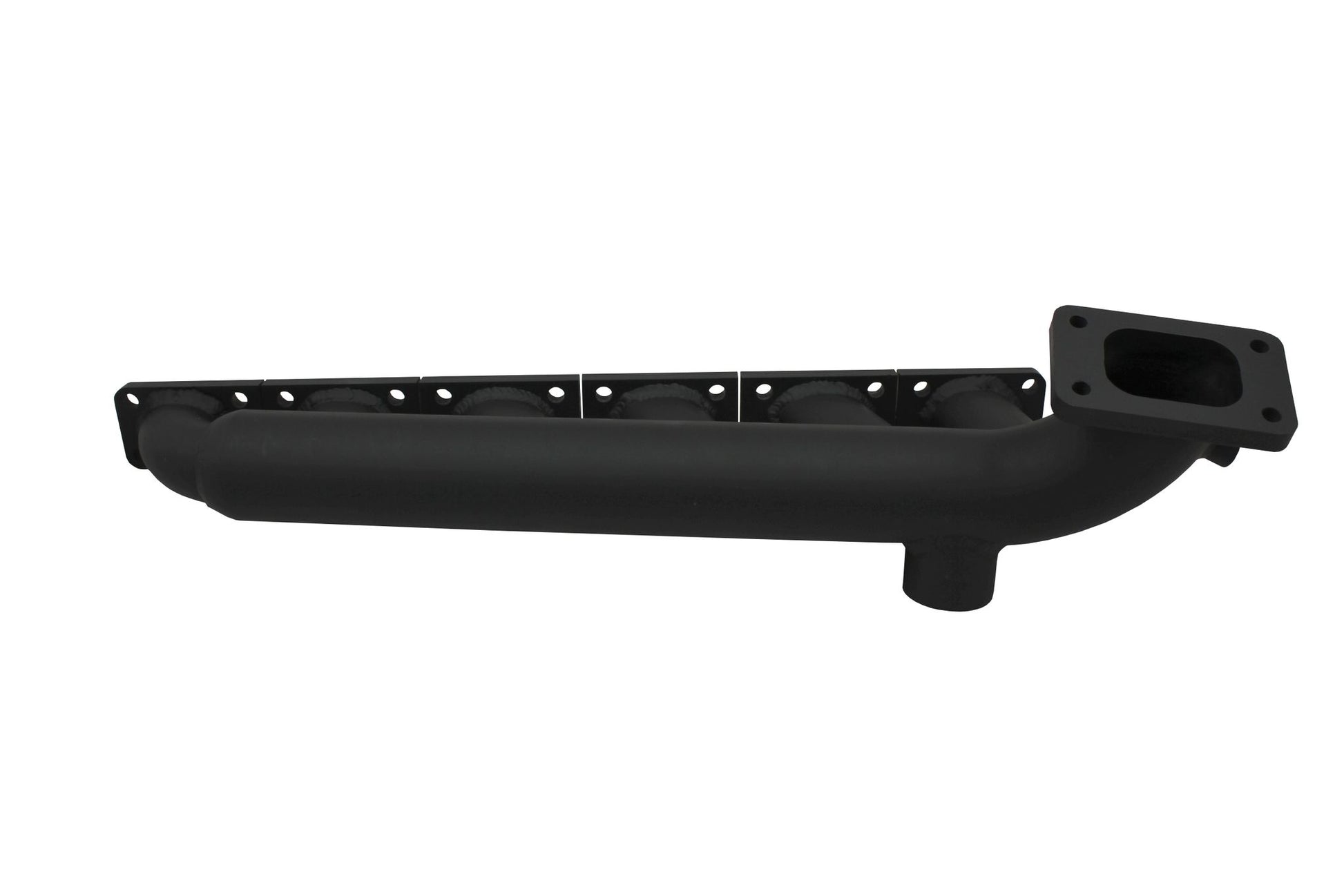

Exhaust manifold for BMW M50, M52, M54 engines – TOP MOUNT T3
CNC milled and profiled manifold channels – made in Poland
High-performance manifold design – compact and efficiently removes exhaust gases from the combustion chambers.
Made of heat-resistant carbon steel, which can withstand rapid temperature fluctuations.
Each manifold is thermally stress-relieved – this means that all internal stresses created during the welding process have been eliminated, ensuring that the structure behaves as a homogeneous, stress-free element.
T3 open-type flange and external wastegate outlet (also available without WG outlet).
The version without WG outlet allows you to keep the A/C compressor. Alternatively, you can connect the WG outlet pipe in another place to prevent interference between the manifold and the A/C compressor – in the standard version, the WG pipe is directed towards the A/C compressor. (contact us if necessary)
Main pipe diameter: 60.3 mm (wall thickness: 2.8 mm).
Lightweight design - approx. 5.5 kg.

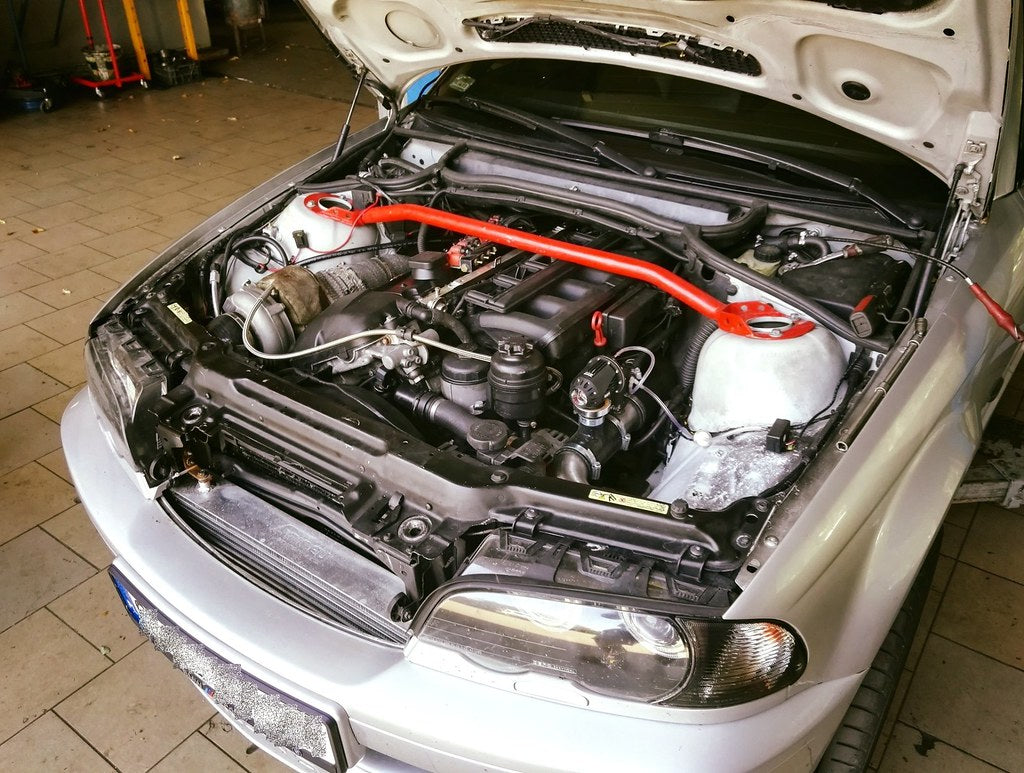

Compatible with all E30, E34, E36, E38, E39 and E46 models equipped with M50, M52 and M54 engines.
Suitable turbochargers: GT29, GT30, GT35, HX35, HX40 and Borg Warner S200.
If you want to thermally insulate the manifold, use a heat shield instead of wrapping it with thermal tape. Metal parts must be able to expand and release heat to the environment - otherwise excessive thermal stress can cause deformations or cracks.
