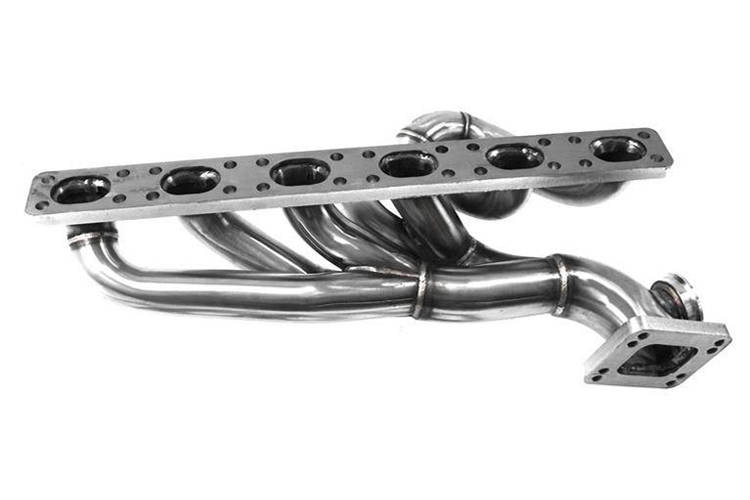

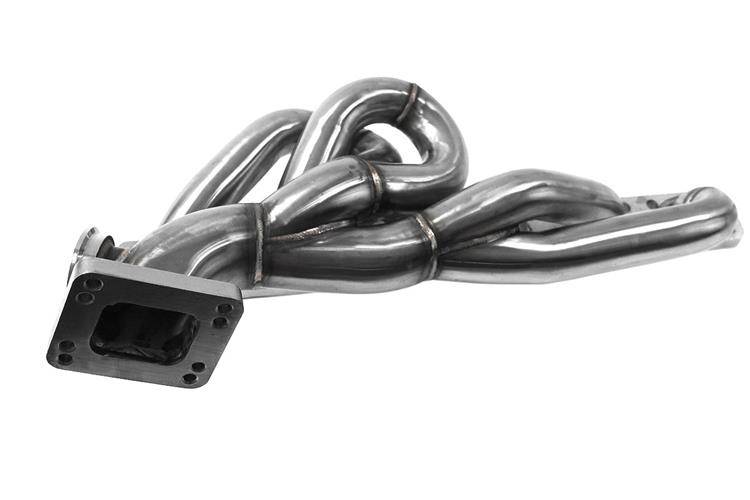

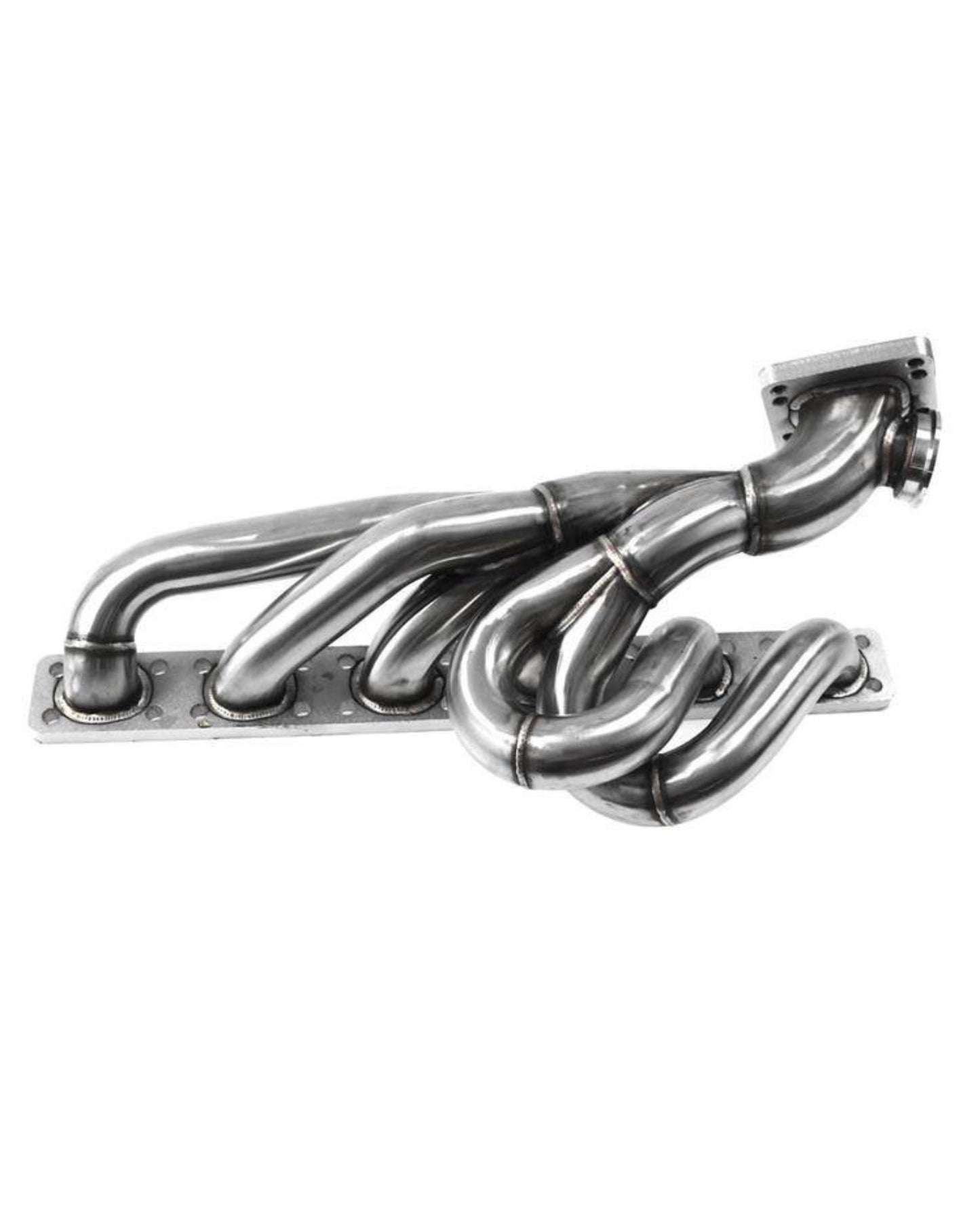

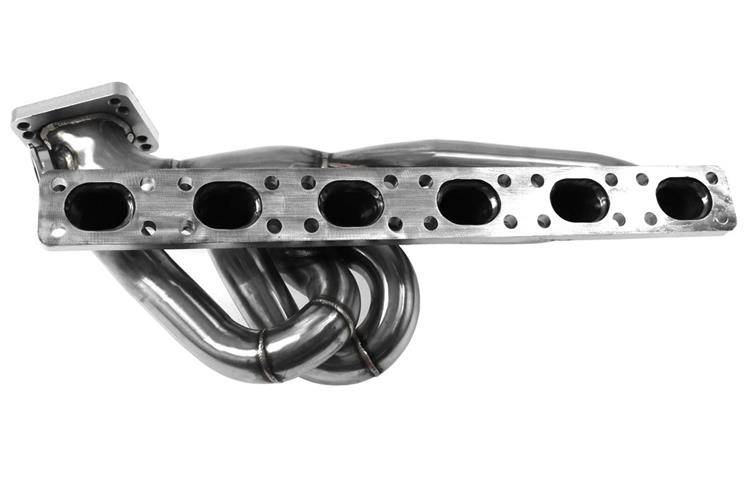

TurboWorks - Exhaust manifold BMW M50 M52 S50 S52 T3/T4 EXTREME

Turbo exhaust collector designed for:

M52B20

• 1994-1998 E36 320i
• 1995-1998 E39 520i

M52TUB20

• 1998-2000 E46 320i, 320Ci,
• 1998-2000 E39 520i
• 1999-2000 E36/7 Z3 2.0i

M52B25

• 1995-1998 E36 323i,
• 1995-2000 E36/5 323ti
• 1995-2000 E39 523i

M52TUB25

• 1998-2000 E46 323i, 323Ci
• 1998-2000 E39 523i
• 1998-2000 E36/7 Z3 2.3i

M52B28

• 1995-1999 E36 328i, 328is
• 1995-1998 E39 528i
• 1995-1998 E38 728i, 728iL
• 1997-1998 E36/7 Z3 2.8

M52TUB28

• 1998-2000 E46 328i, 328Ci
• 1998-2000 E36/7/8 Z3 2.8
• 1998-2000 E39 528i
• 1998-2000 E38 728i

M50B20

• 1990-1992 E34 520i
• 1991-1992 E36 320i

M50B20TU

• 1992-1994 E36 320i
• 1992-1996 E34 520i

M50B24TU

• 1993-1995 E36 325iA/2.4
• 1992-1996 E34 525iA/2.4

M50B25

• 1990-1992 E34 525i, 525ix
• 1991-1992 E36 325i, 325is

M50B25TU

• 1993-1995 E36 325i, 325is
• 1992-1996 E34 525i, 525ix

S50B30

• 1992-1995 E36 M3

S50B30US

• 1994-1995 E36 M3

S50B32

• 1996-1999 E36 M3
• 1996-2000 Z3 M Coupe/M Roadster

TurboWorks exhaust collector made of 3mm stainless steel

Flansza Turbo T3 / T4

When tuning the engine, the exhaust manifold should be replaced at the very beginning, because the exhaust fumes, embossed from the cylinder, are just in the exhaust manifold, which is part of the engine body, then they are directed to the first section of the exhaust pipe, then to the silencer, or several serially located silencers and then to the outlet part of the exhaust pipe.

Exhaust window size: 37x50mm

Output diameter: 62x51mm

Wastegate diameter: 63mm

In our offer we also have lambda probe adapters that eliminate the catalyst error.

Output diameter: 62x51mm

Wastegate diameter: 63mm

In our offer we also have lambda probe adapters that eliminate the catalyst error.
